IEC60529 Access test probe kit includes the follow:
· Ø50mm Access Sphere Probe (Test probe A)
· Jointed Finger Probe(Test probe B)
· 2.5 mm Test Rod (Test probe C)
· 1.0 mm Test Wire(Test probe D)

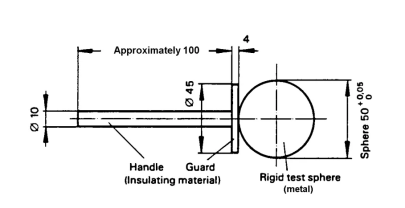

IP1X Probe A /Test Probe A
1. According to : IEC61032:1997 /IEC60529:2001 and UL
2.IP1X Probe A (Test Probe A) is necessary appliance for domestic and similar electrical appliance of against electric shock protection test.
Technical Parameters:
l 1. Ball Diameter: 50mm
l 2. Baffle Plate Diameter: 45mm
l 3.Baffle Plate Thickness:4mm
l 4. Handle Diameter: 10mm
l 5. Handle Length :100mm
l 6.According to IEC61032 figure 1 (the Test probe A)
Jointed Finger Probe B, IP2X 12mm test finger
1. Product Introduction:
It meets the requirements of IEC60065, IEC 60335-1, IEC 60529, IEC61032 Figure 2 Test Tool B, IEC950 Figure 2A, IEC60884, Test Tool B, UL507, EN60529 Figure 1, UL1278 Figure 8.4 and other standards. Inspection for protection against finger touch or inspection against electric shock.
Specimen range: easily accessible live parts or mechanical parts of the enclosure.
2. Specification:
① Diameter of curved finger: 12 mm
② Bending finger length: 80mm (total length of three sections)
③ Diameter of baffle: 50mm
④ Baffle length: 100mm
⑤ Reference standard: IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032, IEC69745-1

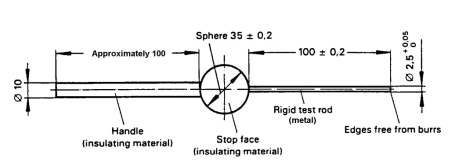

IP3X Test Probe C
1. Product overview:
The test probe C meets the requirements of IEC 60529 & IEC61032 standards. It is used to simulate tools and metal wires in the IP protection test. It is mainly used for the test of the first characteristic number 3 and the additional letter C of the IP protection level test.
In the test requirements for preventing access to dangerous parts, the test probe C needs to have a thrust of 3±0.3N
2. Technical parameters:
① Probe length: 100mm
② Probe diameter: 2.5mm
③ Ball diameter: 35mm
④ Handle diameter: 10mm
⑤ Handle length: 100mm
⑥ According to IEC61032 Figure 3 (Test probe C), IEC60529

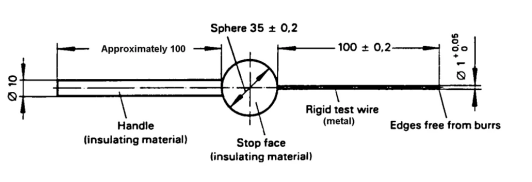

IP4X Test Probe D
Basic Introduction:
1.According to: IEC61032:1997/IEC60529:2001 AND UL
2.IP4X Test Probe D ( Test Probe D) is a necessary appliance for domestic and similar electrical appliance of against electric shock protection test.
Technical parameters
1.Test Probe Length :100mm
2. Test Probe Diameter:1.0mm
3.Dam- sphere Diameter:35mm
4.Handle Diameter:10mm
5.Handle Length 100mm
6. According to IEC61032 figure 4 (the Test probe D)
