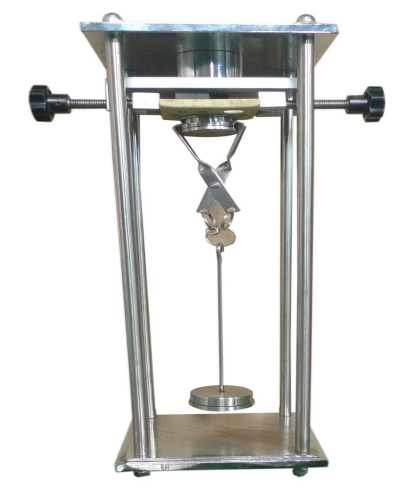

IEC62196-1 Figure 8 (requires customer-provided drawings for customization)
Application:
To verify whether the maximum force required to withdraw the plug from the socket, and the minimum force required to withdraw a single-pole pin from the pin-and-sleeve assembly, are within the specified standard range.
Testing Purpose:
The structure of electrical accessories should allow for easy insertion and withdrawal of the plug, and should prevent the plug from coming out of the socket during normal use.
Test Sample :
Charging pile plugs or sockets for similar purposes (longitudinal testing).
Technical Specifications:
l Charging Pile Gauges: Two sets
l Weights: One set, can be stacked to achieve a 100N withdrawal force test, with additional weights applying 1/10th of the test force
l Operation Method: Manual
l Providing one safety lanyard to prevent the test plug from falling and getting damaged during use
